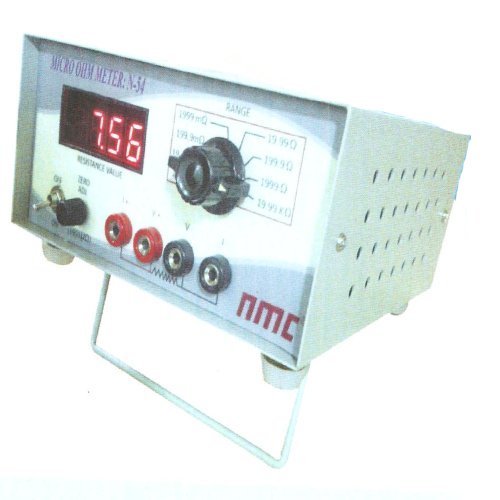

Digital Micro OHM Meter
In Stock
Donec volutpat purus tempor sem molestie, sed blandit lacus posuere. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut posuere mollis nulla ut consectetur.
Category: Digital Micro Ohm Meter
Product Description
NMC's Digital Micro Ohm Meters are low cost, compact, light weight, 3½ digit resistance meter suitable for measurements of resistances of cables, wires, transformers, motor windings, coils and contact resistance of switches, connectors, relays and track resistance of PCB's etc. The value of resistance is displayed on 7 segment LED display. Four terminal measurement systems provide measurements free from errors due to contact resistance and test lead resistance.
For More Information on this Contact Us on 9819450890 OR 9819070556
Accuracy:
- ± 0.2% ± 2 least counts in all ranges except in 200 Milli ohms, 20 Milli ohms and 2000 micro ohms ranges
- ± 0.5% ± 3 least counts in 200 Milli ohms, 20 Milli ohms and 2000 micro ohms ranges
Test Current:
- Amp DC in 1999 micro ohms, 19.99 Milli ohms, 199.9 Milli ohms and 1999 Milli-ohms ranges. 0.1 Amp DC in 19.99 ohms range
- 10 Milli Amp DC in 199.9 ohm range
- I Milli Amp DC in 1999 ohms range
- 0.1 Milli amp DC in 19.99 K ohms range
Specifications:
- Display: 31/2 digit 7 segment LED display with over range indication
- Over-Range Indication : In over-range condition, 1 appears in the left display and the remaining 3 displays are turned off
- Power Requirements : 230 volts AC ± 10%. 50Hz, 10 VA
- Cabinet Size : 80 mm (H) x 180 mm (W) x 180 mm (D)
- Weight : 3 Kg Approx
- Standard Accessories : 4 banana to crocodile test leads and instruction manual
Additional Information:
- Item Code: N-54
