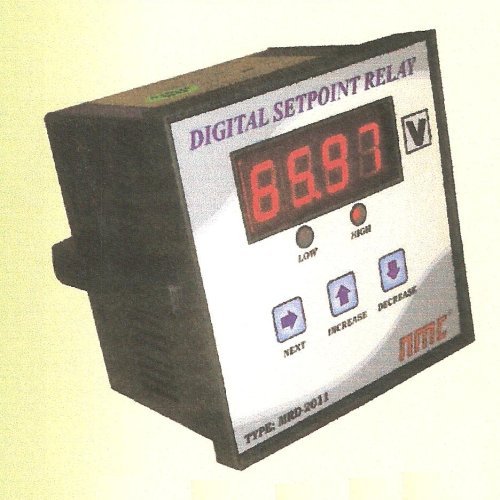

Digital Set Point Relay for Voltage
In Stock
Donec volutpat purus tempor sem molestie, sed blandit lacus posuere. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut posuere mollis nulla ut consectetur.
Category: Digital Set Point Relays
Product Description
These Digital set point relay for voltage (type mrd2011-v), which have two independent outputs and can be used to control the under voltage and over voltage operations. The two independent outputs are programmed/set in a range of 0 vac to 700 vac according to the application needed.
The primary applications of these relays are to monitor digitally the voltage where the voltage fluctuations affect the functioning of the machinery or apparatus. Both the set points are field settable from 0 v to 700 v.
download brochureFor More Information on this Contact Us on 9819450890 OR 9819070556
Features:
- Micro Controller Based Relay
- Field Proven Design
- Available Time Delay Facility up to Ids max
- This is the duration for which the freak be tolerated before the unit trips
- Range available is 0-700 V AC
- 14/ mm Bright 7 segment Four Digits LED Display
- Available for Single Phase control
- Also available for PT operated HT applications
- Two separate output relays for high setting and low setting
- Works like an under voltage — over voltage relay with display
- Standard DIN Flush mounting
- Compact Size : 96 mm x 96 mm x 65 mm
Additional Information:
- Item Code: MRD2011V
- Port of Dispatch: mumbai
- Delivery Time: 1 day
- Packaging Details: standard packing to ensure safe delivery.
For More Information on this Contact Us on 9819450890 OR 9819070556
