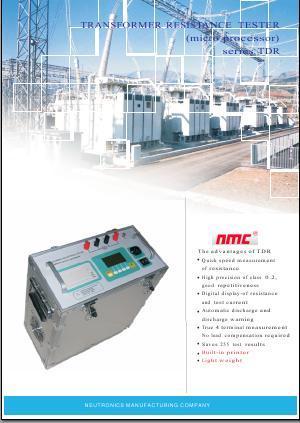

Fully Automatic Transformer Winding Resistance Tester
In Stock
Donec volutpat purus tempor sem molestie, sed blandit lacus posuere. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut posuere mollis nulla ut consectetur.
Category: Transformer Winding Resistance Tester
Product Description
Measure DC resistance of transformers windings etc.
Introduction: The NMC ''TDR'' is a high precision, new generation, light weight large output current
and micro-processor controlled tester. This replaces old DC wheat stone bridge and double arm bridge
for measurement of DC resistance. ''TDR'' adopts new advanced test current power supply technology,
four termi nal measurement, digital display of resistance value and test current. ''TDR'' is
powered by 220V AC mains single phase supply. The measurements are accurate as the test current is
highly stable. High automation is achieved with automatic discharge warning.
Principle: The constant current generated is fed to the resistance under test through the current terminals
and the voltage drop across the resistance under test is measured and displayed in ohms. A true four terminal measurement is used to eliminate the need for lead resistance compensation.
| Model Name/Number | vary |
|---|---|
| Usage/Application | Industrial |
| Display | vary |
| Measuring Frequency | vary |
| Brand | NMC |
| Usage | ELECTRICAL AND TRANSFORMER PROJECTS |
Features
· Constant current source
· Saves 255 test results in memory
· Built-in printer
Description: NMC ''TDR'' is a new generation, digital resistance meter using 4 terminal measurement
technique. Built in printer for printing results. The entire test is done quickly. ''TDR'' generates
constant current, powers up the test current, takes the readings, and displays the results on the LCD
screen. The ''TDR'' is encased in an aluminum alloy cabinet.
SPECIFICATIONS: NMC ''TDR'' is a new generation, digital resistance meter using 4 terminal measurement
technique. Built in printer for printing results. The entire test is done quickly. ''TDR'' generates
constant current, powers up the test current, takes the readings, and displays the results on the LCD
screen. The ''TDR'' is encased in an aluminum alloy cabinet.
Additional Information:
- Item Code: 10A
- Port of Dispatch: MUMBAI
- Production Capacity: 50 PER MONTH
- Delivery Time: 3-4 Weeks
- Packaging Details: STANDARD PACKING
For More Information on this Contact Us on 9819450890 OR 9819070556
