Product Description

Main features

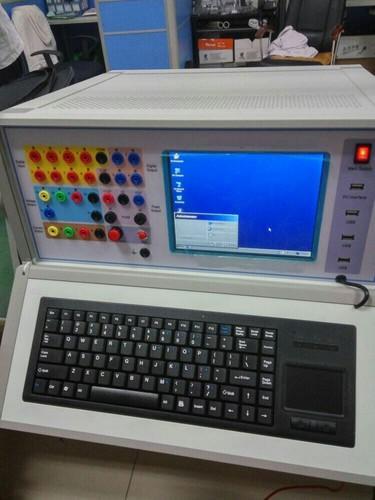

• Tri-phase current, quad-phase voltage output, classic windows operating system, friendly
interface, easy and fast operation
• LCD display screen provides visual status, next step information
8.4”
• thin 101 standard keyboard and optical mouse amd external USB interface
Ultra
• Generates accurate signal of pure sine wave
• Directly outputs: AC voltage, AC current, DC voltage, DC current, variable amplitude,
phase, frequency, 2-20 times harmonic waveform.
• out complex verification works. Real time test data storage, display the vector and
Carry
print the reports etc.
• designed cabinet, small size, fault diagnosis and automatic locking function
Well

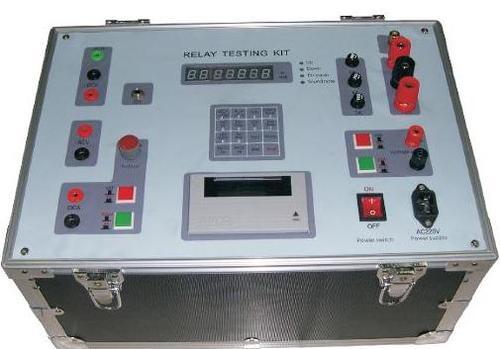

Introduction: Model ‘ DY1200 ’ is an ideal, newly developed multifunction relay tester adopting
monolithic computer technology. It is composed of auto synchronized digital millisecond timer,
logic controlling unit, multifunction digital display, high precision digit collection and processing
unit, current-voltage output unit, overload and over range protection unit. Test process is
automatic for improved efficiency.
